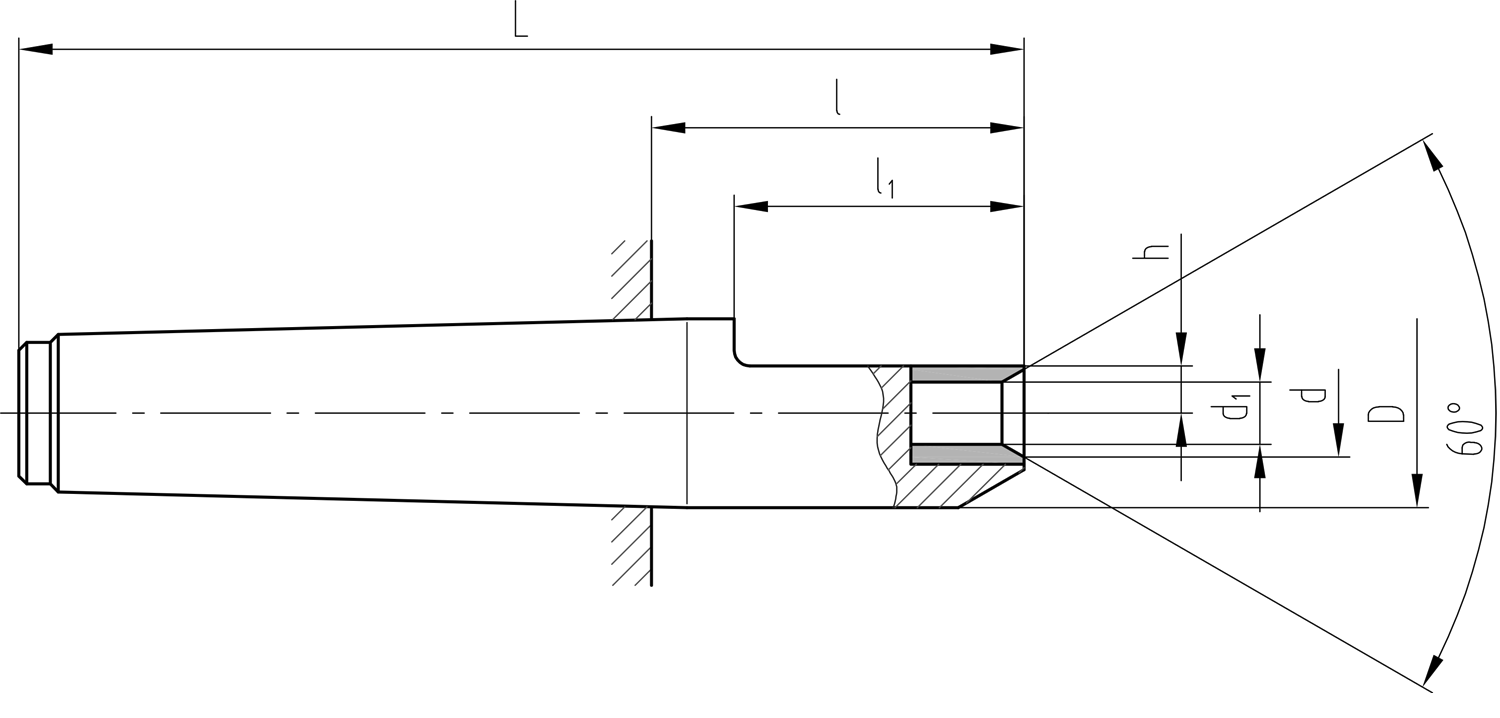

| Kegel | D | d | d1 | L | I | l1 | h | Artikel-Nr. | Verfügbarkeit* |
|---|---|---|---|---|---|---|---|---|---|
| Morse 1 | 12.2 | 2.5 | 1.3 | 77 | 23.5 | 19 | 2.5 | 3.8805.001 | ● |
| 14 | 2 | 0.8 | 86 | 32.5 | 22 | 1 | 5.2505.003 | ● | |
| 14 | 0.9 | 0.3 | 86 | 32.5 | 22 | 0.45 | 5.2505.004 | ● | |
| 14 | 3.4 | 1 | 81 | 27.5 | 20 | 1.75 | 5.2505.005 | ● | |
| Morse 2 | 18 | 4 | 2 | 96 | 32 | 25 | 3 | 3.8805.002 | ● |
| 18 | 2 | 1 | 96 | 32 | 25 | 2 | 3.8805.005 | ● | |
| 20 | 4 | 2 | 102 | 38 | 22 | 2.5 | 5.2505.001 | ● | |
| Morse 3 | 24.1 | 5 | 2.5 | 120 | 39.5 | 32 | 4.5 | 3.8805.003 | ● |
| 24.1 | 2 | 1 | 120 | 39.5 | 32 | 2 | 3.8805.006 | ● | |
| 26 | 3 | 1.8 | 140 | 59.5 | 45 | 2 | 5.2505.002 | ● | |
| Morse 4 | 31.6 | 6 | 3 | 153 | 50.5 | 42 | 4.5 | 3.8805.004 | ● |
| 31.6 | 3 | 2 | 153 | 50.5 | 42 | 3 | 3.8805.007 | ● |
*Legende Verfügbarkeit: ● ab Lager ● 2–3 Wochen ● 6 Wochen / auf Anfrage
